一、核心性能爭議與突破方案

1、 Core performance disputes and breakthrough solutions

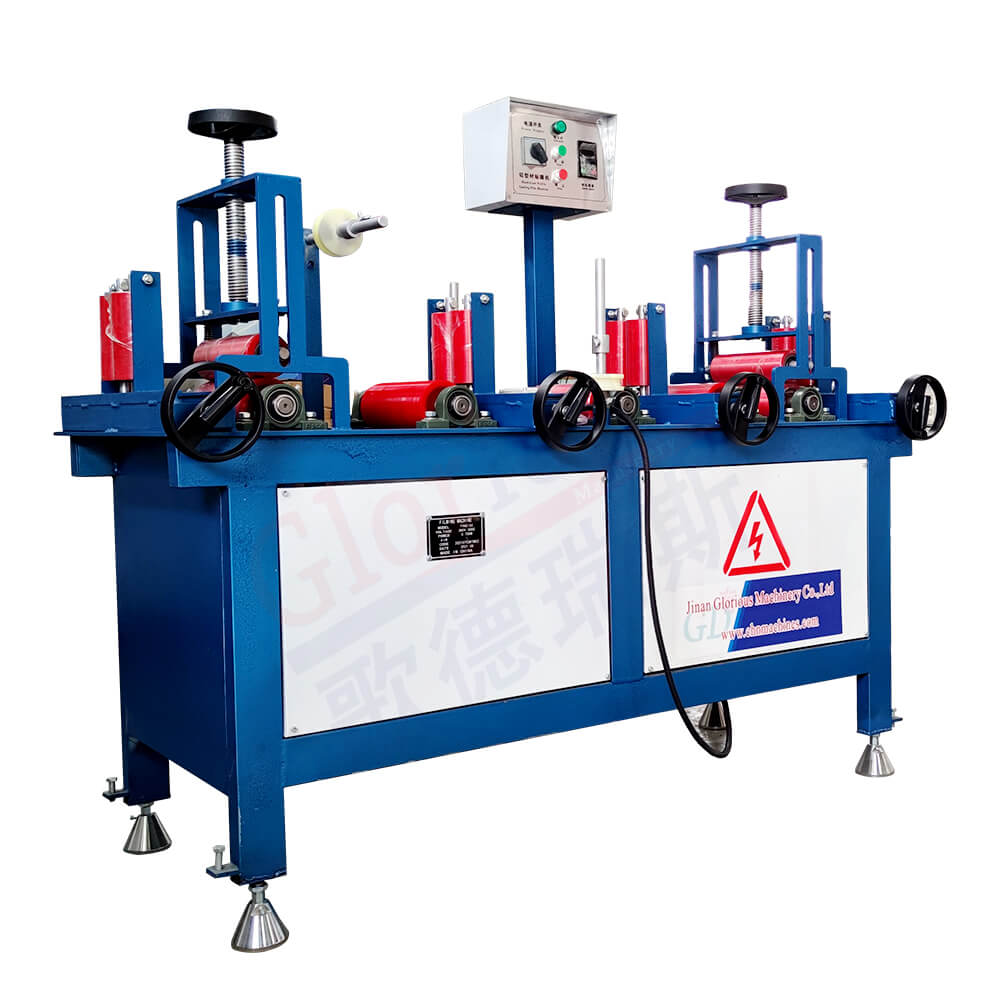

問題點：傳統鋁型材復合設備調整效率低下

Problem point: Low adjustment efficiency of traditional aluminum profile composite equipment

行業爭議：人工換型需停機校準影響產能

Industry controversy: Manual changeover requires downtime for calibration, affecting production capacity

解決方案：搭載雙軸智能數控操作平臺

Solution: Equipped with a dual axis intelligent CNC operation platform

技術參數：

Technical parameters:

垂直調整模組具備±0.05mm重復定位精度

The vertical adjustment module has a repeat positioning accuracy of ± 0.05mm

支持200組加工參數云端存儲/調用

Support cloud storage/retrieval of 200 sets of processing parameters

配置整體式開牙頭數控升降機構

Configure an integrated CNC lifting mechanism for tooth opening heads

二、能效爭議與實測數據

2、 Energy efficiency disputes and measured data

爭議焦點：隔熱結構實際節能效率存疑

Controversy Focus: Doubts about the Actual Energy Efficiency of Thermal Insulation Structures

實測數據：

Actual measurement data:

冬季工況：隔熱系統減少33%窗框熱流失（ASTM C1363標準測試）

Winter operating conditions: Insulation system reduces window frame heat loss by 33% (ASTM C1363 standard test)

夏季制冷：綜合節能率提升至42%（EN 13125標準驗證）

Summer cooling: comprehensive energy-saving rate increased to 42% (verified by EN 13125 standard)

環保認證：符合ISO 14067碳足跡管理標準

Environmental certification: compliant with ISO 14067 carbon footprint management standard

三、密封性能技術攻關

3、 Sealing performance technology research and development

行業痛點：傳統三層密封結構漏壓缺陷

Industry pain point: Traditional three-layer sealing structure leakage defect

創新方案：壓力平衡梯度排水系統

Innovative solution: pressure balanced gradient drainage system

技術特征：

Technical features:

階梯式排水坡道（5°±0.5°精密設計）

Ladder style drainage ramp (5 °± 0.5 ° precision design)

分腔式水汽阻隔技術

Split cavity water vapor barrier technology

三元乙丙膠條+特種毛條復合密封

EPDM rubber strip+special wool strip composite seal

驗收標準：通過GB/T 7106-2019 8級水密性認證

Acceptance criteria: Passed GB/T 7106-2019 Level 8 water tightness certification

四、智能化生產適配

4、 Intelligent production adaptation

轉型難題：多品種小批量生產柔性不足

Transformation challenge: Insufficient flexibility in producing multiple varieties and small batches

控制系統配置：

Control system configuration:

西門子828D數控內核

Siemens 828D CNC Core

支持MES系統雙向通訊

Support bidirectional communication of MES system

配備自適應加工補償算法

Equipped with adaptive machining compensation algorithm

產能指標：換型時間≤3min（較傳統設備提升87%）

Capacity indicator: changeover time ≤ 3 minutes (increased by 87% compared to traditional equipment)

（核心數據轉換對照表）

(Core Data Conversion Comparison Table)

原表述 → 技術參數化表述

Original expression → Technical parameterization expression

"減少1/3熱量散失" → 熱阻值提升0.35(m?·K)/W

Reduce heat loss by 1/3 "→ Increase resistance value by 0.35 (m · K)/W

"數據存儲調用" → 支持G代碼/M代碼混合編程

Data Storage Call → Supports G-code/M-code mixed programming

"三層密封結構" → 0.8mm等壓腔梯度設計

Three layer sealing structure → 0.8mm isobaric chamber gradient design

"智能數控系統" → 32位RISC處理器架構

Intelligent Numerical Control System → 32-bit RISC Processor Architecture
